Precision Rollers

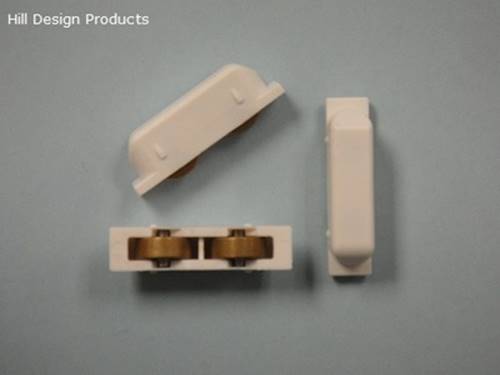

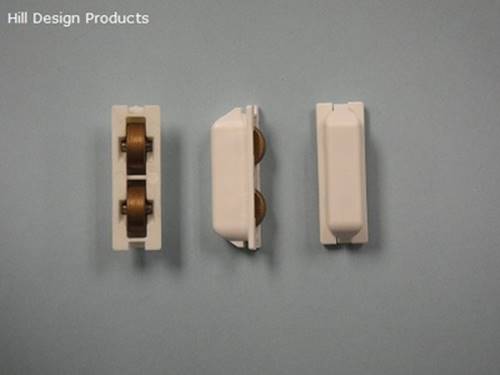

Twin Roller Assembly

Brass rollers with stainless steel axles.

Narrow end flanged.
Slim fit with end snaps.

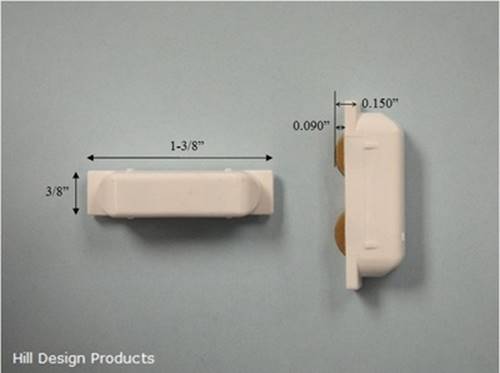

Installation port dimensions: 3/8″ x 1-3/8″

Roller height from sash face: 0.150″
Roller height from top of case flange: 0.090″

Part Number

RBLL-01

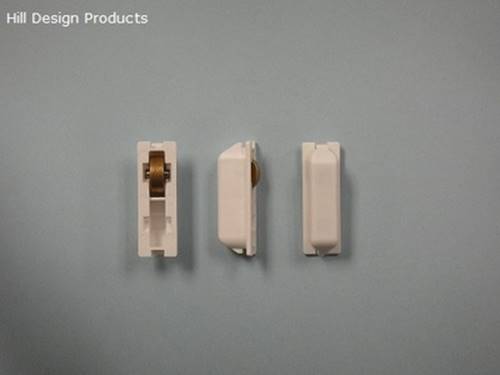

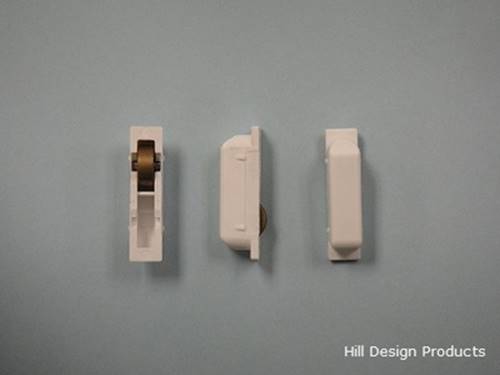

High-Low Roller Assembly

Brass roller with stainless steel axle.

Narrow end flanged.
Slim fit with end snaps.

Installation port dimensions: 3/8″ x 1-3/8″

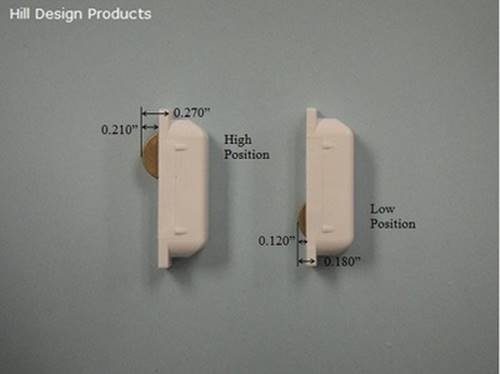

Roller height from sash face in low position: 0.180″
Roller height from sash face in high position: 0.270″

Roller height from top of case flange, low: 0.120″
Roller height from top of case flange, high: 0.210″

Part Number

RBHL-01

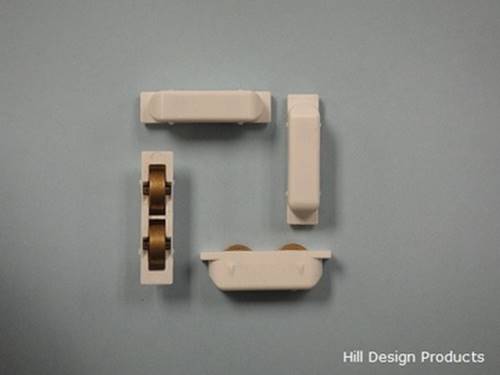

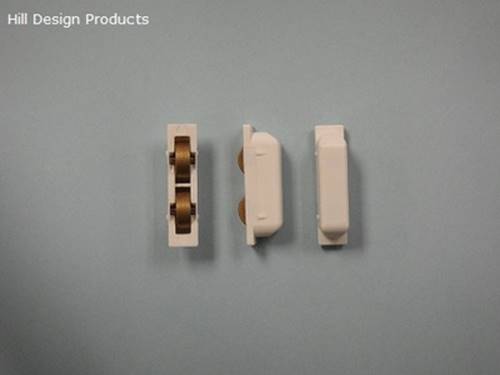

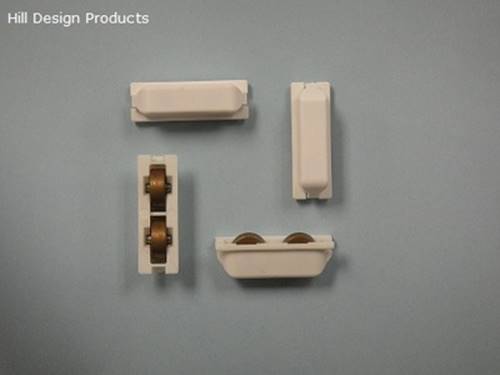

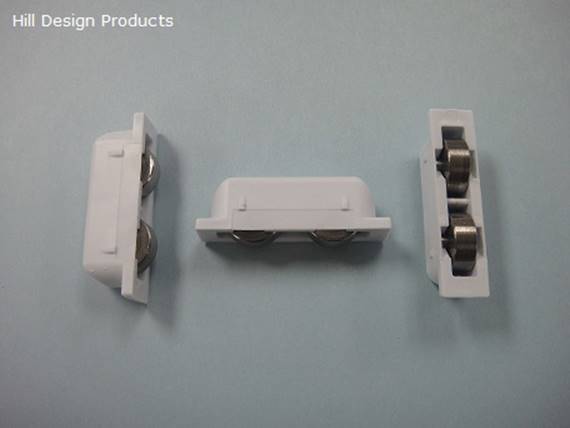

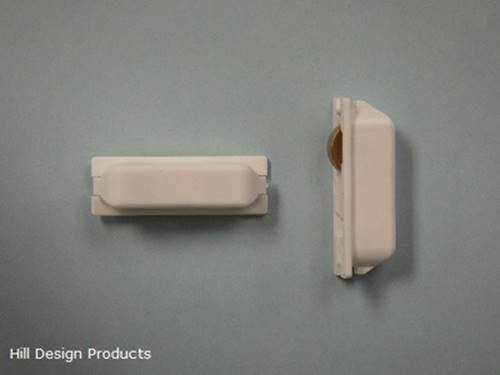

Twin Roller Assembly

Brass rollers with stainless steel axles.

Full flanged.
4-sides for weight load and snap-in assembly.

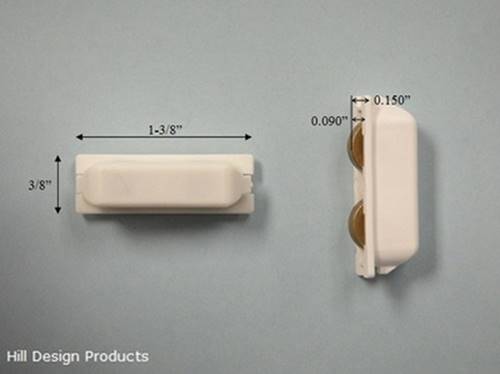

Installation port dimensions: 3/8″ x 1-3/8″

Roller height from sash face: 0.150″
Roller height from top of case flange: 0.090″

Part Number

RBT-01

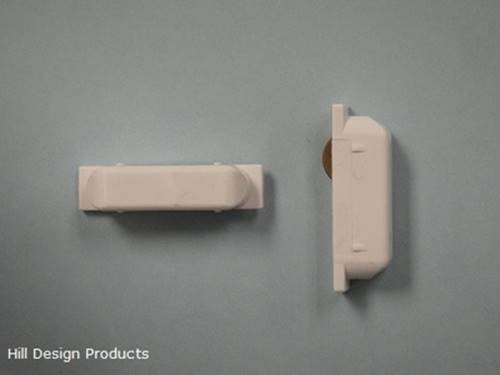

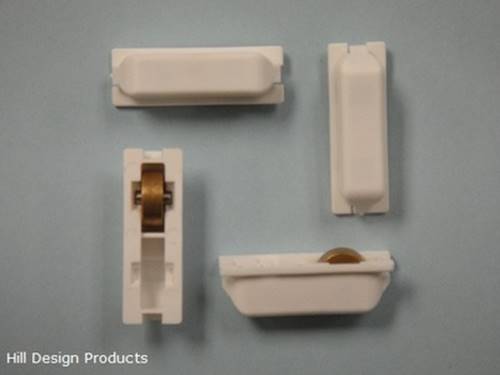

High-Low Roller Assembly

Brass roller with stainless steel axle.

Full flanged.
4-sides for weight load and snap-in assembly.

Installation port dimensions: 3/8″ x 1-3/8″

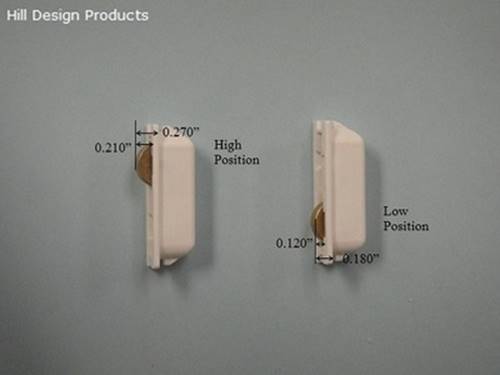

Roller height from sash face in low position: 0.180″
Roller height from sash face in high position: 0.270″

Roller height from top of case flange, low: 0.120″
Roller height from top of case flange, high: 0.210″

Part Number

RBTHL-01
